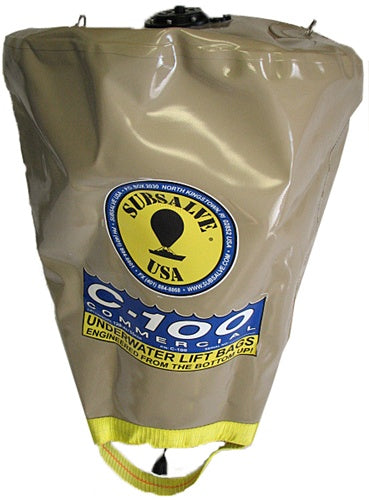

Subsalve 120 lb Commercial Lift Bag
C-100
Subsalve 120 lb Commercial Lift Bag
Multiple Applications
• Light salvage
• Object recovery
• Underwater construction
• Scientific research
Excellent Portability
• Fraction of the cost of a barge or crane
• Easy for a single diver to use
• Especially suited for remote locations
• Deployable from small craft
Easy to Use
• Proprietary SUBSALVE USA Plunger Dump Valve allows air control with a push of a button at the
top of the bag and a lanyard at the bottom—vent air from above, beside, or below the lifting bag to
achieve desired ascent rate.
• 1/4? NPT inflation port for remote filling, multiple bag manifolding, or to install optional stainless steel
quick disconnect.
• Ready for immediate use—factory-equipped with all necessary hardware
Fabric
• Urethane-coated nylon—high-strength and heavy-duty
• Superior abrasion resistance
• Resistant to most petro-chemicals
• UV-resistant
• Low maintenance requirements and easy to clean
• RF welded seams
Lift Straps Designed for Safety
• 6000lb. –load rated high strength resin-treated nylon webbing
• Sewn directly to the bottom of the bag
• Safe working ratio of 6:1
Lift Capacity Diameter Height Weight
120 lbs 1'4" 2'6'' 5 lbs
