HEED 3 - 175 Series

HYDRO date:  03/10

• More than 1lb lighter than competing models
• Under 9" tall, the HEED 3 is the smallest emergency breathing device on the market
• Affordable - the HEED 3 is over $100 less than competitors models
• Simple design is easy to repair and maintain
• Always-on design is ready to deliver air when you need it
• Refillable from an air compressor (or SCUBA tank using optional adapter)
• Deluxe Dial Gauge Pressure Indicator standard on every unit
• CE approved - Tanks on units shipped to Europe are CE approved to meet current European Safety Standards required for all compressed gas cylinders and are properly CE marked
• Made in the USA
• Can be equipped with optional Nose Clip on a Lanyard
• Includes refill adapter

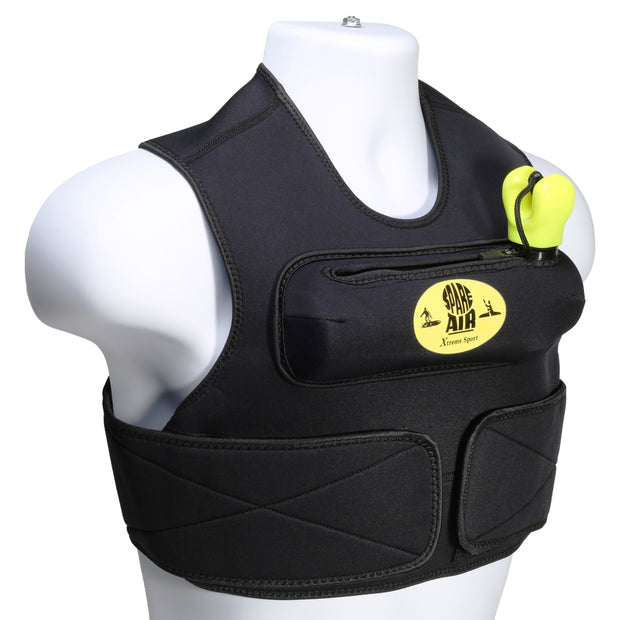

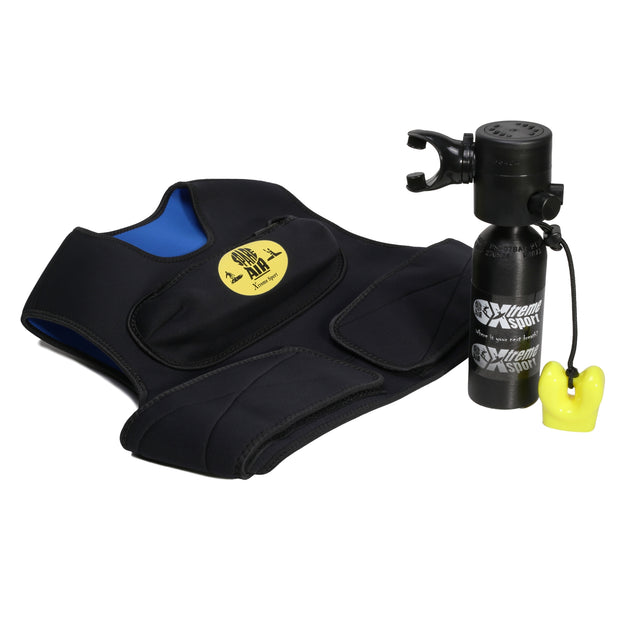

Spare Air Xtreme Sport

Our Smallest Spare Air

The Xtreme is designed to allow athletes more time to self-rescue from the dangers of extreme sports like tow-in surfing and kayaking. A proven design, the Spare Air has been in production since 1979 with over 350,000 units in use. Package includes:

• 1.7 cu ft of air provides about 32 normal breaths
• Neoprene Vest for hands-free use (one size fits most)
• Dial Gauge Pressure Indicator
• Mouthpiece Cover
• 910S and 920 C Refill Adapters

HEED 3 - The Original Helicopter Emergency Egress Device

The Helicopter Emergency Egress Device 3 (HEED 3) manufactured by Submersible Systems, Inc. is an updated version of the original HEED. A compact, lightweight and reliable self contained breathing apparatus, the HEED 3 is designed to increase the survivability of military and commercial personnel in short-term out-of-air emergencies.

• From Spare Air.
• Provides lifesaving air needed to egress from a downed aircraft or a rolled vehicle in the water.
• Ideal for all helicopters, fixed wing aircraft, float planes, watercraft and vehicles that operate around possible water emergencies.
• Protects personnel from inhaling dangerous and lethal toxic fumes from fire or smoke.

Why HEED 3?

• Over 250,000 systems sold worldwide.
• Off-the-shelf, available for delivery now.
• Over 1 lb. lighter than competing models.
• Affordable - The HEED 3 is over $100 less than competitor’s models.
• Provides lifesaving air needed to egress from a downed aircraft or a rolled vehicle in the water.
• Ideal for all helicopters, fixed wing aircraft, float planes, watercraft and vehicles that operate around possible water emergencies.
• Protects personnel from inhaling dangerous and lethal toxic fumes from fire or smoke.
• Simple, compact design is less complicated to use and repair than competing models.
• Always-on design is ready to deliver air when you need it.
• Refillable from an air compressor or scuba tank.
• Includes custom holster to attach to a modular vest.
• OVER 25 YEARS WITH A PROVEN DESIGN!

Sometimes, we get a question "Why should I purchase a HEED 3 over other manufacturers of safety breathing devices?"

The answer is simple: HEED 3 uses a proven SCUBA regulator that has been saving lives for 30 years. The first version of the HEED was a repackaged Spare Air, ordered by the US Navy to assist in training and helicopter water emergencies. Since then, hundreds of organizations, governments, agencies and individuals have taken advantage of our reliable design. And the best reason for a HEED 3 is "simplicity."

• Simple to use: the "always on" design is always ready to deliver air when you need it. There are no moving parts. The dial gauge is easy to read and clearly indicates if the tank is full and ready to us. Just place the mouthpiece in your mouth and breath normally [be sure to read owner's manual before using].
• Simple to maintain: the unit requires no routine maintenance except after use or once a year for a simple inspection and o-ring replacement. Every 5 years, the tank should be hydrostatically tested. The unit can be serviced at any Spare Air certified SCUBA shop or by sending directly to Spare Air.
• Simple to refill: the unit can be filled using any breathing air compressor or from a filled SCUBA tank [3000 psi].
• Simple to mount: the holster included with your HEED 3 is designed to mount easily to any molli vest or belt. The possibilities are only limited by your imagination.
• Simple to travel with: the small size and light weight make the HEED 3 ideal for commercial airline travel. Although the unit cannot be in service during the flight, once you arrive, your unit can easily be refilled and be ready when you need it.
• PLEASE ALLOW 1 WEEK PRIOR TO SHIPPING, ENSURES YOU HAVE THE LATEST HYDRO DATE AVAILABLE.

How to Fly with Spare Air

When carrying SPARE AIR on a commercial aircraft, the system must be empty and according to TSA regulations, the regulator must be unscrewed from the cylinder so they can be sure that it is empty.

1. To empty all the air out of the SPARE AIR press the Purge Button until no more air is released. Unscrew the regulator from the cylinder counter-clockwise (no special tools are needed – it is screwed on hand tight).
2. If the regulator does not unscrew easily DO NOT force it or use tools, instead soak the entire SPARE AIR in a 1-1 vinegar & water solution overnight to loosen any salt corrosion. Leave o-ring, washer and exhaust discs on the regulator.

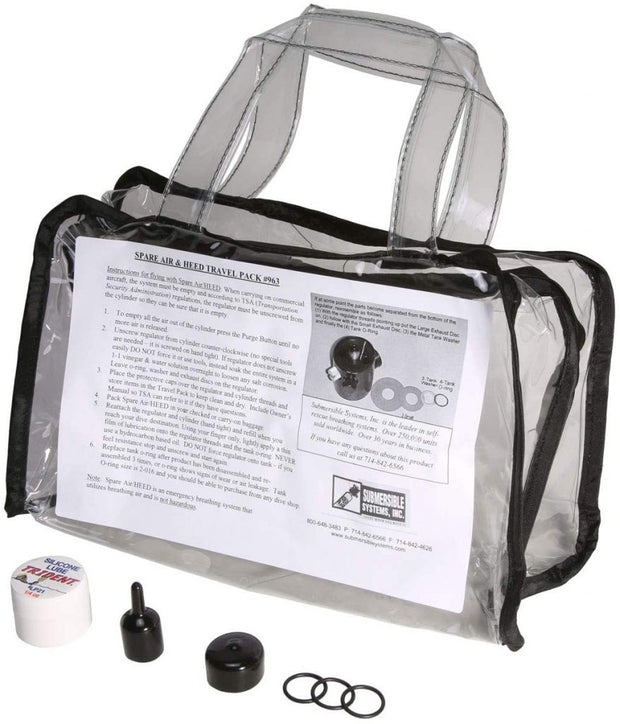

3. Place the regulator and cylinder in a Ziploc plastic bag to protect and keep them clean. (Option - purchase the "SPARE AIR Travel Pack" which includes its own carrying bag - see below.) Keep SPARE AIR regulator and cylinder threads clean and dry. Include SPARE AIR Owners Manual so TSA employees can refer to it if they have questions.
4. Pack SPARE AIR in your checked or carry-on baggage.
5. Reattach the regulator and cylinder and refill SPARE AIR when you reach your dive destination. You may lightly lubricate the tank o-ring with a small amount of silicone spray or grease - NEVER use a hydrocarbon based oil. DO NOT force regulator onto tank - if you feel resistance stop and unscrew and start again.
6. Replace tank o-ring after product has been disassembled and reassembled 3 times, or o-ring shows signs of wear or air leakage. Tank O-ring size is 016 and you should be able to purchase from any dive shop.

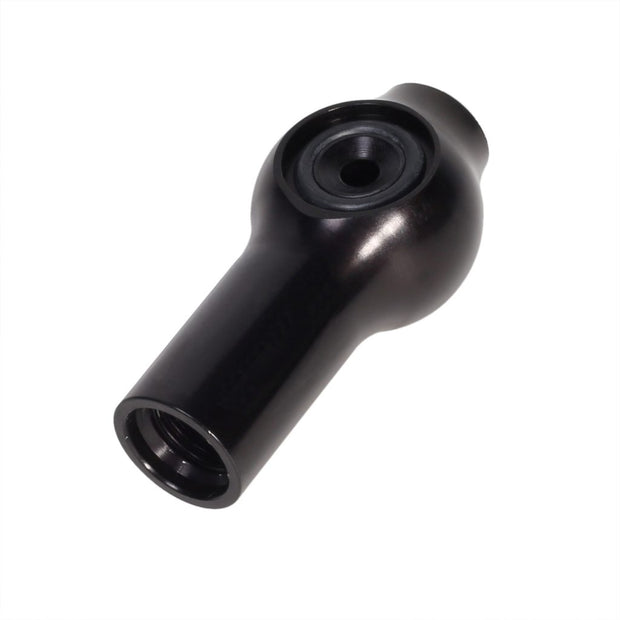

Air Compressor Refill Adapter (920C)

Air Compressor Refill Adapter so you can fill your own Spare Air bottle from a standard SCUBA air compressor!

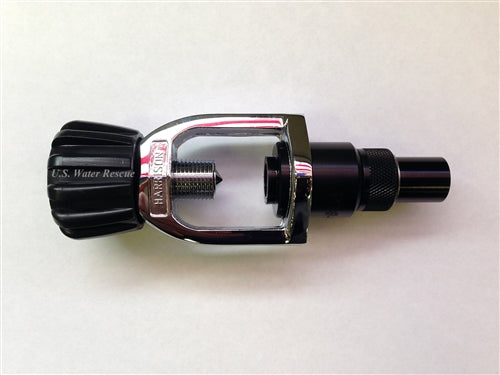

Refill Adapter (patented, P/N 910S)

One of the best features of Spare Air is that you can simply and easily refill it yourself - allowing you to be in control of your own safety!

• Spare Air is easily refilled from your own SCUBA tank in about 1 minute.
• Simply attach the adapter that is included in every Spare Air package to your own SCUBA tank.
• There is no need to make a separate trip to the dive store to get Spare Air refilled.

Spare Air Model 300 - Nitrox (300PK-N)

Do you dive with Nitrox?

• If so this is the SPARE AIR for you. It is the perfect addition to your Nitrox System, with quick and easy refills from your own Nitrox SCUBA tank.
• Nitrox ready up to 40% EAN
• 3.0 cubic feet of air
• Refillable to 3000 psi off any Nitrox SCUBA tank or air compressor with included refill adapter (patented)
• Easily attaches to your BC with included holster and safety leash
• Small, hands-free, nearly neutrally buoyant
• Breathe on demand regulator -No complicated instructions
• Completely redundant back-up miniature SCUBA system
• Faster than buddy breathing and easier than an octopus

• Maximum Capacity 3.0 cu ft / 85 liters
• Length 13.4" / 34 cm
• Diameter 2.25" / 5.71 cm
• Maximum Pressure 3000 psi / 200 bar
• Weight (full) 2.17 lb. / .985 kg
• Surface Breaths* 57
• Water Volume 26.62 cu in / .42 liters

• Maximum Capacity 3.0 cu ft / 85 liters
• Length 13.4" / 34 cm
• Diameter 2.25" / 5.71 cm
• Maximum Pressure 3000 psi / 200 bar
• Weight (full) 2.17 lb. / .985 kg
• Surface Breaths* 57
• Water Volume 26.62 cu in / .42 liters
