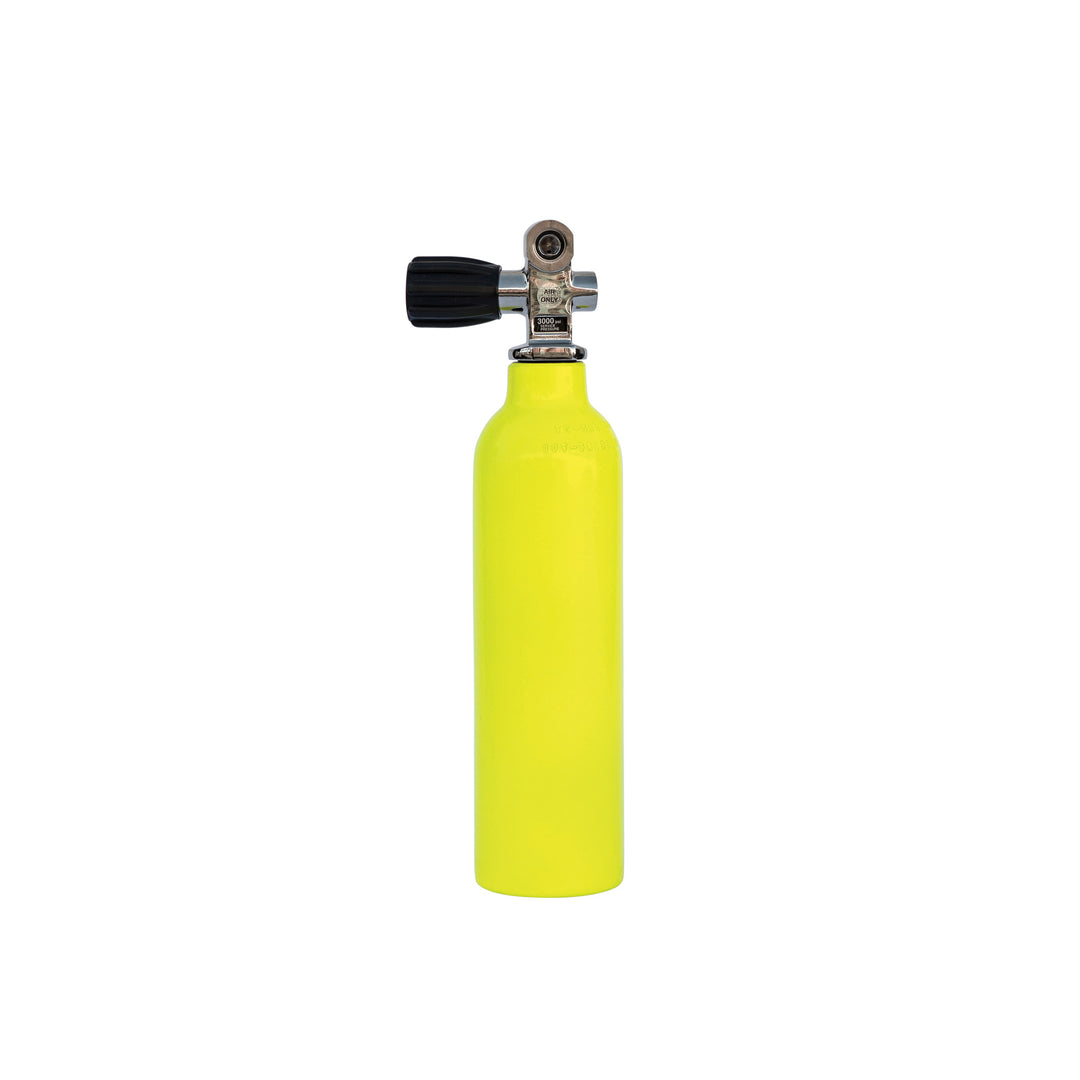

Pony Cylinders / Tanks

• Includes Pro Valve (DIN or Yoke use)
• 3000 psi except Argon Cylinder which is 2015 psi
• Yellow in color except for 40 cu' which is Brushed natural color
• Luxfer gas cylinders

OXYGEN USE
Metal Impact cylinders are cleaned for oxygen and oxygen enriched air at the factory. If you intend to use this cylinder for oxygen or oxygen enriched service, ie. with any gas containing oxygen concentrations of 23.5% or more all components used with the cylinder must be oxygen compatible. It the responsibility of the cylinder user to ensure that the cylinder and all components are maintained in a proper state of oxygen cleanliness in strict accordance with regulatory requirements and industry standards.

HYDRO DATES ON NEW ALUMINUM CYLINDERS
We ship cylinders with the latest possible hydro date. We are limited in some models/ colors because of high manufacturing quantities and relatively low sales volume. Please understand that aluminum cylinders shipped to your location within 12 months of manufacture date are considered current hydro.

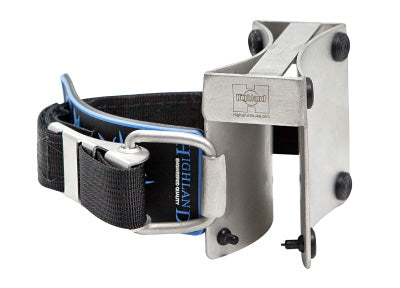

Finally, a cost effective, durable, easy to use, stable, pony bracket system that works! Highland SS Pony Mount is engineered to carry a small pony cylinder along side of your primary dive cylinder. Aluminum 8, 13, & 19 cu ft pony cylinders.

• Quick detach
• Stainless steel cam buckle
• Rubber feet to protect paint
• Adjustable length nylon webbing
• 316 grade stainless steel construction
• Includes buckle pad to prevent tank scratching
• Designed for 6.9" to 8.0"diameter primary cylinder
• Designed for 4.4" diameter pony cylinders - Aluminum 8, 13, & 19 cu ft


  Click here to download brochure

Pony Bottle Gauge

Ultra compact, submersible pressure gauge that threads directly into any standard first stage high pressure port.

• 0 to 5000 psi
• Threads into first stage high pressure port
• Built-in over pressure relief valve (OPV)
• Ideal for backup air supplies and deco bottles
• Large numbers and colored indicators for easy monitoring

QUICK-TEC PONY BRACKET MOUNT

Includes two small aluminum mounting blocks that slide together and lock into position. The Quick-Tec I includes nylon cam band, the Quick-Tec II includes a pair of stainless steel hose clamps
for a more permanent mounting.

• Fits 13, 19 or a 30cu foot pony bottle.
• Made with machine blocks of aluminum.
• The aluminum mounting blocks slide together and lock in position.
• Each Quick-Tec system includes 2 small aluminum mounting blocks that slide together and lock into position. A simple press of the lever allows the mounting blocks to release and slide apart.
• Does not include band for main tank, typically diver will use BCD tank band for the mounting on the primary cylinder.

Choose either the Quick-Tec I or the Quick-Tec II:

• Quick-Tec I system includes a nylon Cam Band for the pony / stage cylinder.
• Quick-Tec II system includes a pair of stainless steel hose clamps for more permanent mounting of the pony / stage cylinder.

Heavy Duty Quick Draw Pony Bracket 13/19

• New, heavy duty receiver bracket with our famous 13/19 cubic foot bottle ring.
• New bracket is one full inch taller and will grip your tank even firmer than the standard bracket does.
• Stainless steel Quick release pins with lanyard.
• All extruded marine aluminum and stainless steel.
• Ring has staging feature like the new 30/40 rings.

Features

• Contains Heavy Duty reciever bracket with bottle ring for 13/19' aluminum pony bottle and Stainless steel Quick release pins with lanyard.
• Originally developed for the 30/40 size bottles this bracket will hold all our rings and is stable with just about any bottle.
• Works great with larger diameter tanks.
• Even bigger bottles are stable with this bracket.
• An optional rubber insert can be glued to the receiver bracket with a glue like Pro Bond tm.

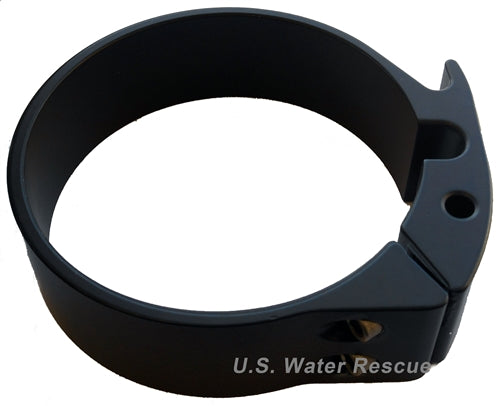

Ring for 13-19 Quick Draw Pony Bracket

A solid extruded and machined aluminum ring for the 13 and 19 cubic foot pony and staging bottles. Machined to our exacting standards then microfinished and plated.

New ring has a round slot machined into the receiver part of the ring that will accomodate up to 1/2" Nylon line for staging. The bottle can then be hung from the BCD web rings as a staging bottle when not attached to the tank. Meets the new one cut rule for penetration dives. A great safety feature.

Comes with stainless steel fasteners.

Fits both our new Heavy duty reciever bracket and standard bracket.

Mounts securely to your tank via your BCD tank strap or an additional tank band. Typically a BCD strap will work just fine, unless the strap does not line up where you want to mount your pony bottle. The pony bottle should be mounted in a way that it is streamlined and does not effect your trim while diving.

U.S. Water Rescue Dive Team uses the Quick Draw Pony Brackets as their primary mounting systems when using SCUBA. They mount one receiver bracket on each BC, then have multiple pony bottles set up ready to go with the Pony Bracket Ring. This system allow quick switching of bottles without having to take time to switch brackets. USWRDT chooses to use the Quick Draw System because it is a solid mount, some pony systems slide all over the place and move all about. The Quick Draw System also allows easy detachment underwater where as a Backup Diver could give the pony bottle to a diver in need and leave if he needed to retrieve more equipment or air (for whatever reason or emergency). Many systems on the market are hard to release underwater with thick gloves, no visibility, and cold numb hands.

Finally, a cost effective, durable, easy to use, stable, pony bracket system that works! Highland SS Pony Mount is engineered to carry a small pony cylinder along side of your primary dive cylinder. For Aluminum 6 cu ft pony cylinders.

• Quick detach
• Stainless steel cam buckle
• Rubber feet to protect paint
• Adjustable length nylon webbing
• 316 grade stainless steel construction
• Includes buckle pad to prevent tank scratching
• Designed for 6.9" to 8.0"diameter primary cylinder
• Designed for 3.2" diameter pony cylinders - Aluminum 6 cu ft


  Click here to download brochure

Spare Air Model 300 - Nitrox (300PK-N)

Do you dive with Nitrox?

• If so this is the SPARE AIR for you. It is the perfect addition to your Nitrox System, with quick and easy refills from your own Nitrox SCUBA tank.
• Nitrox ready up to 40% EAN
• 3.0 cubic feet of air
• Refillable to 3000 psi off any Nitrox SCUBA tank or air compressor with included refill adapter (patented)
• Easily attaches to your BC with included holster and safety leash
• Small, hands-free, nearly neutrally buoyant
• Breathe on demand regulator -No complicated instructions
• Completely redundant back-up miniature SCUBA system
• Faster than buddy breathing and easier than an octopus

SPECIFICATIONS
	Maximum Capacity		3.0 cu ft / 85 liters
	Length		13.4" / 34 cm
	Diameter		2.25" / 5.71 cm
	Maximum Pressure		3000 psi / 200 bar
	Weight (full)		2.17 lb. / .985 kg
	Surface Breaths*		57
	Water Volume		26.62 cu in / .44 liters

• Maximum Capacity 3.0 cu ft / 85 liters
• Length 13.4" / 34 cm
• Diameter 2.25" / 5.71 cm
• Maximum Pressure 3000 psi / 200 bar
• Weight (full) 2.17 lb. / .985 kg
• Surface Breaths* 57
• Water Volume 26.62 cu in / .42 liters

*Based on 1.6 liters per breath

• Maximum Capacity 3.0 cu ft / 85 liters
• Length 13.4" / 34 cm
• Diameter 2.25" / 5.71 cm
• Maximum Pressure 3000 psi / 200 bar
• Weight (full) 2.17 lb. / .985 kg
• Surface Breaths* 57
• Water Volume 26.62 cu in / .42 liters

*Based on 1.6 liters per breath
