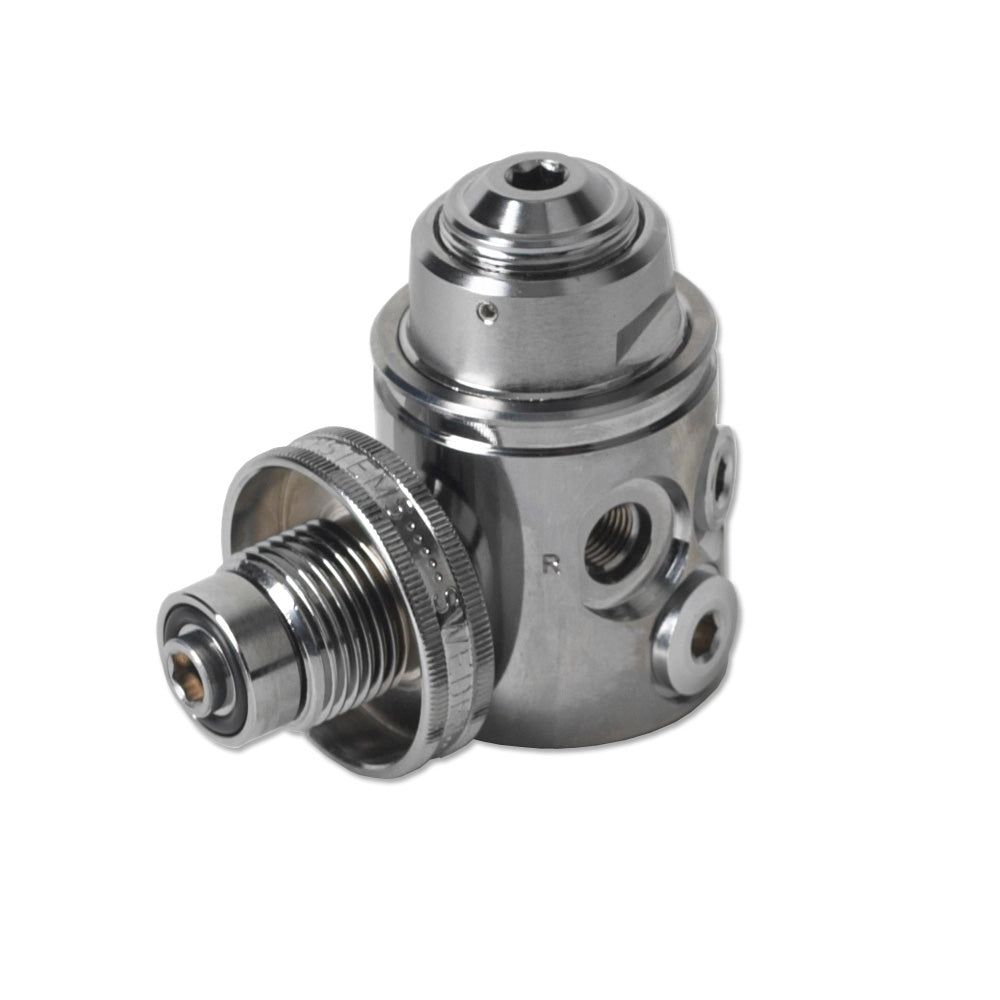

Poseidon Cyklon 1st Stage Regulator -DIN

First stage for the Cyklon 5000 and the Cyklon metal. The first regulator in the world with a single hose and the demand valve situated at the mouth. Thanks to its well-tested construction and design, the Cyklon is still the first choice of the German Navy and many others.

Features

Two high pressure ports
Four low pressure ports
DIN G 5/8 connection

Technical Specs

Description: Diaphram-actuated, balanced.
Connecting threads for primary pressure: G 5/8-max 4350 psi / 300 bar accord. SS 2600/K and DIN 47/5 or yoke connection accord. SS 2603 and ANSI/CGA VI: 1987
Primary Pressure: Max 4350 psi
Secondary Pressure: Max 174 psi
Air Flow: Approx. 1050 l/min
Inhalation resistance at 115 l/min: max 40 mm of water
Exhalation resistance: max 20 mm of water

Outlet Connections

One outlet marked R for second stage (max airflow): UNF 3/8" - secondary pressure
Three outlets marked LP for drysuits, BCDs, hookah supply, safety second stage, etc: .UNF 3/8" - secondary pressure
Two outlets marked HP for pressure gauge: UNF 7/16" - primary pressure
