OTS Aquacom SSB-2010 Transceiver (DiverUnit)

OTS Aquacom SSB-2010 Transceiver (DiverUnit)


Regular price $1,329.00 Sale price$999.00 Save $330.00

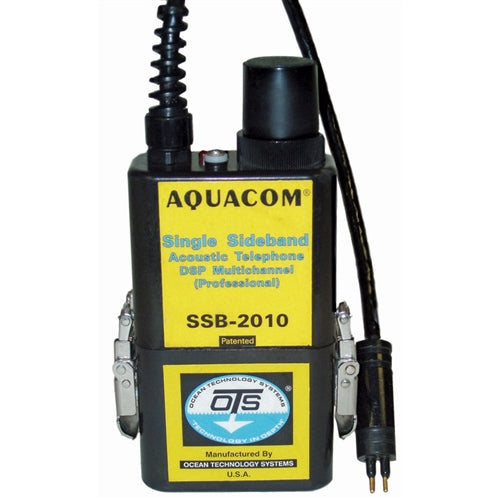

Aquacom SSB-2010, 4-channel transceiver (5 Watts Output Power)

Model: SSB-2010, Aquacom SSB 4-channel, voice menu, diver transceiver.

Can be used w/CDK-6.

The Aquacom® SSB-2010 transceiver is a 5 watt, multichannel single sideband underwater telephone designed with Professional Search & Rescue Teams in mind. The Aquacom® SSB-2010 can be configured to operate with virtually any style full face mask (FFM) or mouth mask. With the addition of a CDK-6 Surface Accessory Kit, the Aquacom® SSB-2010 is easily converted into a portable surface station.

Standard features are: Voice Operated Transmitter (VOX), Push-to-talk control (PTT), Squelch, 4 channels, Earphone volumes, Voice menu (the user can adjust the SSB-2010 underwater via the voice menu), removable transducer, and heavy duty design.

This affordable system is tough, powerful, and a must for any serious Search & Rescue Team!

Item# 900272-000

Public Safety Divers, Military, and Law Enforcement please contact us directly for Public Safety Pricing.

Technical Specs
Aquacom® SSB-2010
  • Nominal Range: Calm sea: Greater than 1,000 meters. Sea State 6: 100 meters nominal.
  • Transmitter Band: 31 to 33 kHz.
  • Audio Frequency Response: 300-4,000 Hz
  • Receiver Sensitivity: -110 dBv
  • Acoustic Output Power: 3 watt (174.2 dB re 1 uPA at one meter.
  • Auto. Gain Control (AGC): 120 dB dynamic range
  • Transducer: Piezoelectric type (cable length: 35').
  • Transmitter Activation: Voice operated transmitter (VOX) or manual activation (PTT).
  • Battery Type: 8-AA Alkaline cells or opt. RB-10A Nickel Cad. pack.or NiMH.
  • Battery Life: 12 hrs. on AA Alkaline, 10% duty cycle, 6 hrs. Nicad, 13 hrs. Metal Hydride
  • Low Battery Indicator: Red LED on upper housing (also indicates power is ON).
  • Housing Dimensions: Height: 7.60", Width: 3.55, Depth: l.80"
  • Channels 1 = 32.768 kHz upper sideband 2 = 32,768 kHz Lower sideband 3 = 31.250 kHz upper sideband 4 = 31.250 kHz lower sideband
