Fixed Waist Staging Ring

Fixed Waist Staging Ring is the complimentary partner to the Shoulder Drop Dee (SR-1). Used as upper and lower clip-off locations for slinging bottles, together they allow the diver efficient one-handed stage bottle management. Hunting for the D-ring with one hand and clipping off with the other is history. The WR-2 may be positioned comfortably anywhere on the waist belt or directly over the hip because of its contoured base. Ring is oriented at approximately 40° to the base plate. Positively locks on standard 2″ web. Very popular with cold water, mitted divers. By Manta Industries / Highseas Millwork.

• XS Scuba Steel Cylinders
• Hot Dip Galvanized Finish
• Thermo High Flow Isolation Manifold
• Combination DIN / Yoke outlets
• Highland Bands

XS SCUBA STEEL CYLINDERS
• Manufactured by Worthington Cylinders, Canada
• Hot dip galvanized exterior finish
• Approved for use in US (DOT) and Canada (TC)
• Deep drawn and ironing process (DDI)
• Ideal buoyancy characteristics
• Cleaned for up to 100% oxygen at the factory
• Cylinders are submerged into 840 F zinc alloy
• 5 to 8 mil thick zinc barrier, metallurgically
bonded to steel cylinder
• It won’t chip and wear away like cylinders with
a painted zinc finish

THERMO ISOLATION MANIFOLD / PRO OUTLETS
• Clean for pre-blended Nitrox up to 40% oxygen
• Viton and EPDM o-rings
• Christo-Lube MCG 111 lubrication
• Nylon high pressure seat material
• Combination DIN / yoke outlets
• Removable spin-out DIN inserts
• Attachment of DIN or yoke style regulators
• Unsurpassed gas flow
• Allows optimum regulator performance
• Direct placement porting


HIGHLAND BANDS
• Proudly built to the exact specifications as the
original Joe McGrath bands
• 316 grade stainless steel construction
• Stainless steel mounting hardware included
• 7.25” Diameter x 2.5” wide (SB725) with 85s
• 8.00” Diameter x 2.5” wide (SB800) with 95s, 108s
• 8.00” Diameter x 3.0” wide (SB803) with 121s
• Manufactured by Sea Pearls in the USA
• Ribbed interior to prevent water trapping
• High quality injection-molded construction

SELF-DRAINING TANK BOOTS
• Manufactured by Sea Pearls in the USA
• Ribbed interior to prevent water trapping
• High quality injection-molded construction

Deluxe Argon Cylinder Mounting System
One System fits 6 cu ft. cylinders and 13 cu ft cylinders.
The System will fit a wide variety of main back gas cylinders ranging from 72 Cu Ft. to 104 Cu Ft.


This is one of the best systems we have ever used. You can actually cinch this system down very tight and not have to worry about loosing your tank. Non-slip pads on the main straps and the small straps. System can be used as an Argon Drysuit Inflation System or for a back-up air supply. Very durable, high quality materials. System does not include tanks.

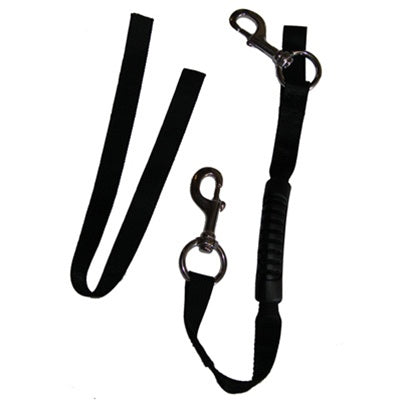

Stage Bottle Strap Kits

• Larger diameter black handle is easier to carry.
• A 3-bar slide allows for length adjustment.

Includes:

• 2 ea. 4” jumbo stainless steel bolt snaps
• 1” wide, adjustable length, nylon webbing handle (2200 lbs. tensile strength)
• 11” piece of black tubing to create a comfortable carry handle
• Rugged, elastic EPDM hose retainer with easy grip tab
• Marine grade stainless steel cylinder clamp
• Nylon tube webbing to cover cylinder clamp
• 2” piece of black PVC tubing to cover the cylinder band adjustment screw

SS440 - 4.4” diameter cylinders (aluminum 19)
SS525 - 5.125 to 6.0” diameter cylinders (aluminum 40)
SS725 - 6.5” to 8.0” diameter cylinders (aluminum 80)

• (2) 4" Jumbo stainless steel bolt snaps
• (1) 1" Wide nylon webbing handle 2200 lbs. tensile strength
• (1) 11" piece of clear plastic tubing to create a comfortable carry handle
• (1) Marine grade stainless steel cylinder clamp
• (1) Nylon tube webbing to cover cylinder clamp
• (1) Rugged 2" wide elastic EPDM hose retainer with easy grip tab
• (1) 2" piece of black PVC tubing to cover the cylinder band adjustment

Suunto EON Steel Dive Computer

The fully customizable dive computer with a bright color screen and extremely durable construction.

Drop Dee for Shoulder Straps

The SR-1 is a rigid, easy to hit ring with only 1-1/4″ of standoff at approximately 10°, yet it will accommodate the largest clips and carabineers. It offers the most efficient means for slinging bottles to the harness. Especially popular with mitted, cold water divers.

• Readily accepts standard 2″ webbing.
• May be comfortably located any where on the shoulder because of its contoured back, and locks positively on the web – will not slide down even with a load of stage bottles.
• Works well in combination with the WR-2 (Waist Ring).
• By Manta Industries / Highseas Millwork

Learn all about Technical Dive Equipment by taking aTDI Intro To Tech Course!

• Stage Bottle Strap with heavy duty handle
• 2 Large Stainless Steel Bolt Snaps
• Great for cold water use

• 45 Degree Billy Ring
• 316 Stainless Steel

Petrel 2 SA OC/CC Standalone Dive Computer



Shearwater Perdix AI Dive Computer

Shearwater Perdix AI comes standard with no transmitter. During checkout please select no transmitter or Add Transmitter for $350.

Shearwater is proud to introduce the newest member of the Shearwater family: The Perdix AI. Offering all of the same great features of the Perdix, the Perdix AI uses its large, easy-to-read screen to clearly display the tank pressure as well as your gas time remaining (GTR). The Perdix AI is capable of connecting to either one or two transmitters giving the diver the option to monitor both tanks or dive sidemount.

The Perdix AI dive computer from Shearwater search, is a robust dive computer for technical divers of all levels, and ready out of the box for air, nitrox, and trimix gasses. The Perdix AI is the newest offering from Shearwater, similar in design an operation to the Petrel line of dive computers, but in a smaller form factor.

Its simple 2-button interface and easy to navigate menu structure allows for intuitive and quick operation underwater. The Perdix AI features a large, high resolution LCD screen is both easy to read, and power efficient. The Perdix AI operates on any AA sized battery, and is user-replaceable in the field with minimal effort. The included digital compass is both accurate and smooth, and Bluetooth integration offers download and upload capability from Mac, PC, and iOS devices.

The Perdix AI may be used for open-circuit and closed circuit-diving, as well as gauge mode if desired


The small form factor of the Perdix AI does not allow for an external connection for rebreather oxygen cell monitoring. Despite this, closed-circuit rebreather divers find the Perdix AI more than adequate for CCR decompression calculations using a manually entered PO2 setpoint.

In closed-circuit mode, the Perdix AI stores banks of 5 closed-circuit diluent gasses, as well as 5 open-circuit bailout gasses. In open circuit mode, 5 bottom mixes, and 5 decompression gasses may be stored. Gas switching is performed quickly and easily with minimal button pushes. Gasses may be added or edited while underwater – useful for lost gas scenarios.

Decompression Algorithm

The Shearwater Perdix dive computer features the following modes of operation:

OC Rec - 3 gas nitrox recreational computer
OC Tec - Multi gas, trimix decompression computer
CC INT - Closed circuit fixed PPO2
Gauge - Bottom timer with stopwatch and dive logging

All Shearwater dive computers use Buhlmann ZHL-16C as the decompression algorithm. User adjustable conservatism may be achieved by manipulation of gradient factors settings in the computer’s settings. An optional VPM-B algorithm may be purchased if desired, and installed in the field.

The 2.2" Color LCD display is easy to read, with high contrast, and automatic screen brightness. The display may be customized with user-defined font colors, and may be inverted for those who wish to wear the Perdix AI on their opposite arm. Several layouts may be selected from, and fonts may be customized for size and color.


The user interface is simple to use with adaptive menus. Commands are entered with piezoelectric buttons. Warnings are clear and concise using color-coded fonts. A simple 2-button bailout allows for quick and easy changes to open-circuit. No confusing icons are used; rather the Perdix AI navigation is done with plain-language. Divers have a choice of metric, or imperial units.


The Perdix AI operates with any AA-sized battery. Shearwater Research recommends the use of Duracell Coppertop alkaline batteries for their widespread availability, and reliability. Shearwater dive computers will operate about 30 hours on a quality alkaline battery, or up to 95 hours using Saft LS14500 batteries. Li-Ion, NiMH, Photo Lithium 1.5 and Zinc-Carbon 1.5 batteries may also be used.

The Shearwater dive computers also features a super-capacitor to keep track of your tissue loading in the event a battery change is required between dives. This capacitor holds enough energy to maintain tissue status for 15 minutes. This means that if your battery change takes less than 15 minutes you can continue with repetitive dives, and don’t have to reset the date and time.

The Shearwater Perdix AI features a 1000-hour dive log, which may be downloaded via Bluetooth to a Mac, PC or iOS device using free Shearwater Desktop. The Bluetooth feature may also be used to upload firmware updates, when available.

SHEARWATER PERDIX DIVE COMPUTER

Sleek and Sophisticated
Merging state of the art manufacturing techniques, innovative engineered materials, and consumer feedback, Shearwater has successfully developed a low-profile, sleekly contoured design without sacrificing features vital to technical divers. It’s everything you love about the Petrel dive computer, just smaller.

MODES

• OC Rec 3 gas nitrox recreational computer
• OC Tec Multi gas, trimix decompression computer
• CC INT Closed circuit fixed PPO2
• Gauge Bottom timer with stop watch and dive logging

FEATURES

• User Replaceable AA Battery
• Air, Nitrox, Trimix capable
• Quick OC bailout from CC
• 3 axis, tilt compensated, digital compass
• Decompression
• Dive Planning
• Buhlmann GF algorithm
• Optional VPM-B algorithm
• Dive Logging
• Upgradeable Firmware
• Smart Ready Bluetooth Interface

SPECIFICATIONS

• Screen Resolution: 320x240 QVGA
• Display Type: Full colour LED LCD
• Display Size: 2.2"
• Battery Type: Single AA (any type)
• Battery Life
• AA Alkaline: 45 Hours
• SAFT LS14500: 120 Hours
• Number of Gases: 5 OC / 5 CC
• Dive Log: 1,000 Hours
• Depth Rating: 260m (850ft)

DIMENSIONS

• Computer (WxHxD) 83 x 74 x 39 mm (3.26” x 2.9”x 1.53”)
• Weight 154g (0.34 lbs)

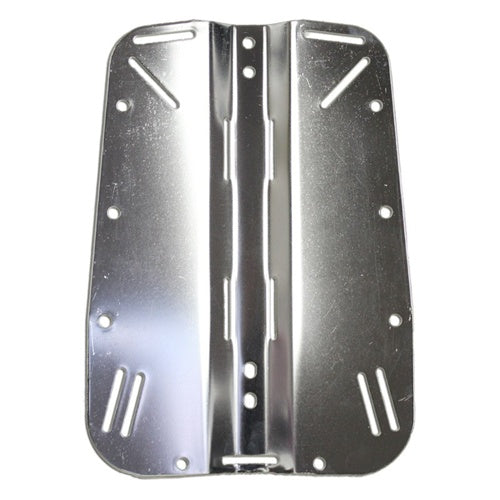

What makes a Halcyon backplate so unique?

Every Halcyon backplate features a host of subtle finishing details that enhance in-water performance, reliability, and diving comfort. These factors, together with the industry’s highest quality finish, set Halcyon backplates apart from the ordinary. Available in carefully finished Stainless Steel or mil.spec. hard-coated aluminum, the Halcyon backplate resists the oxidation and marring common in other less finished, yet similarly priced, plates. Individually milled edges combine with the high quality materials to provide the industry’s most sought-after backplate. In addition to our unparalleled quality and unique ergonomic shaping, each Halcyon backplate features attachment points for Halcyon’s Single-tank Adapter, Storage Pak, ACB Weight Pockets and the low profile (6 ft3) dry suit inflation bottle mounting straps.

Halcyon’s webbing slot angles have been designed to provide optimal comfort for the diver. During a dive, webbing slip is mitigated by the inherent grip of the slot on the webbing, enhancing diver performance and comfort. Halcyon webbing is manufactured exclusively to Halcyon specifications; our webbing is stiff enough to provide support but soft enough to allow a complete range of motion. The crotch strap features 2” soft webbing carefully selected to minimize wear points and prevent uncomfortable pressure points.

Replacement sensor for the OxyCheq Expedition oxygen analyzer. Sensor shipped in a sealed package.
Use / Application:

• OxyCheq Expedition
• MSA MiniOx IV (Internal Sensor)
• Abysmal TekChek
• RC Dive Spectrum Pro-1
• Vandergraph VN202

Manufactured by: Teledyne

Oxycheq Raider III & IV Light Sock

The Raider III Light Sock is ambidextrous (both bands), designed for Open Water Divers and Technical Divers. When in use the diver maintains full dexterity of the hand. Perfect for when traveling. Easy to use and remove and it will not fall off the hands when properly adjusted. It fits Intova size lights or similar that have a smaller diameter.

The Light Sock is adjustable to fit a wide range of hand sizes via the double Velcro closure and adjusting the bungee length. The bungee works well with drysuits. When not in use it can be folded and stuck in a pocket and it reduces weight and packs easy for travel.

The Oxycheq Raider III Light Sock fits a smaller dive light than the Oxycheq Raider I Light Sock.

Made In USA

Description

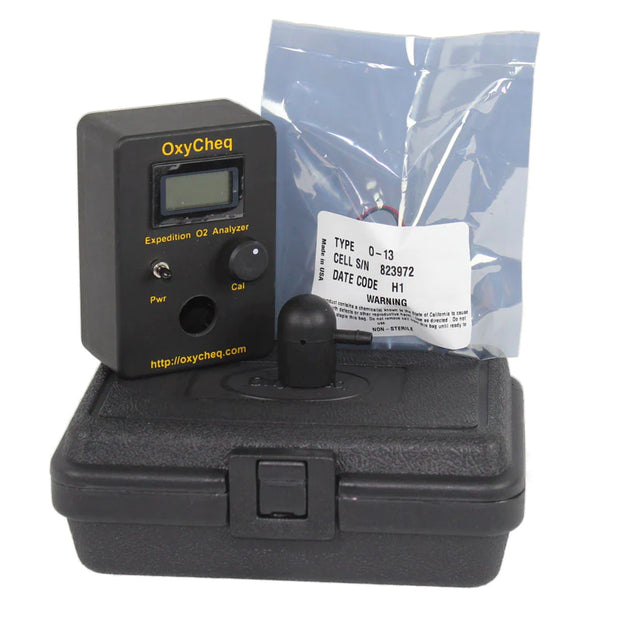

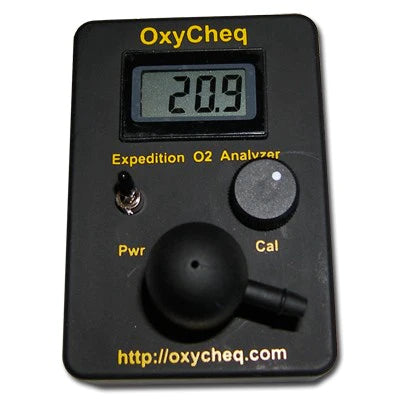

OxyCheq Expedition O2 Analyzer

We heard they wanted a durable, compact oxygen analyzer with a user replaceable sensor, readily available batteries, a splash-proof case and and at a reasonable price. The OxyCheq Expedition Oxygen Analyzer meets this criteria and more. We designed an electronic circuit that is easy to calibrate and uses a long life sensor. We used most reliable parts made and enclosed the electronics and sensor in a compact, sturdy, custom molded ABS case. The case, digital panel meter, potentiometer, on/off switch, and sensor, are sealed to protect the electronics inside the enclosure from harsh elements. It is splash-proof. The "Expedition" comes with a compact carrying case with foam to protect your investment. It also has room for other items such as the optional remote flow restrictor, batteries, or a sensor. Both enriched air divers and technical divers will truly appreciate the compact size, durability, performance, ease of operation, reliability and sensor life. The Expedition set the standard in performance, price and quality for oxygen analyzers for the diving community. The OxyCheq Expedition Oxygen Analyzer uses a removable cap with a built-in flow restrictor. Although not necessary, you can also attach a 2-3 lpm flow restrictor to the sensor cap/flow restrictor if desired. Calibration can be made in air or pure oxygen and takes seconds. Once the sensor is calibrated, analyzing gas is easy. The user simply opens the cylinder valve until a slow, constant hiss is heard, places the sensor cap restrictor over the gas, and waits for a constant reading. The case and cap are extremely durable and there are no pliable rings to wear out or parts to break off. The sensor cap/restrictor also has the ability to sense gas remotely with an optional flow restrictor that can connect to a low pressure bc hose.

Changing the sensor or batteries is very easy. When you remove the back of our case, all of the electronics are located on the front half of the case. There are no wires attaching the back to the front that can result in strains on the leads when replacing the sensor or batteries.

In limited light conditions and if desired, the user can flip on the backlight.

The OxyCheq Expedition Oxygen Analyzer was designed with simplicity in mind. Once out of the box, the average user will be able to sample gas in minutes.

The "Expedition" was built to last and perform ... and it does. We did not take short cuts or use inferior parts to lower the quality of this unit, we simply took less profit. OxyCheq is known for our personal service and attention, we built the "Expedition" for you and have no doubt you will be extremely pleased with your purchase of this oxygen analyzer.


Features:

• Easy Operation Compact
• Durable O-Ring Sealed
• ABA Case splash proof
• Built in Flow Restrictor
• Gas calibration for air or pure oxygen
• On/Off/On with backlight
• Easy sensor and battery replacement
• Fast response long life sensor
• Temperature Range 0-50c (32-122F)
• Expected battery life of two years / AAA Batteries
• Low Battery Warning
• Resolution 0.1% O2 Measurement Range 0.1-100% O2
• Compact carry and storage case
• Replacement Sensor: O-13
• 1 year warranty on instrument, 12 months on sensor
• Approximate Dimensions: L3.5" x W2.5" x H1.6"

Oxycheq Expedition O2 Analyzer

Technical Specs
*Easy Operation Compact
*Durable O-Ring Sealed
*ABA Case splash proof
*Built in Flow Restrictor
*Gas calibration for air or pure oxygen
*On/Off/On with backlight
*Easy sensor and battery replacement
*Fast response long life sensor
*Temperature Range 0-50c (32-122F)
*Expected battery life of two years / AAA Batteries
*Low Battery Warning
*Resolution 0.1% O2 Measurement Range 0.1-100% O2
*Compact carry and storage case
*Replacement Sensor: O-13
*1 year warranty on instrument, 6 month on sensor
*Approximate Dimensions: L3.5" x W2.5" x H1.6"

BCD Harness Utility Keeper - Pair

The Highseas Utility Keepers are ideal for holding down backup lights but can also be used on the shoulder strap to retain your inflator hose.

• Webbing not included
• Mant Industries / Highseas Millwork
• KP-UT

Manta JR. Reel

The Manta Reel: The ultimate in dive reels with features unlike any other on the market today. Constructed from the highest quality materials, it’s made to withstand the demands of today’s advancing technical diver.

Our most popular reel, the Jr is the perfect primary reel for all divers. Compact and loaded with practical features, the Jr delivers peace of mind.

Features:

• Designed for deploying liftbags
• All hardware is stainless steel
• Solid one piece UHMW plastic spool
• Factory set but adjustable tension control
• Will not backlash or birdnest
• The spring loaded AFS (anti-free spool) system mechanically prevents unwanted free falling and free spooling of line
• 185' of #30 line

HOG D2 First Stage - DIN

SS Book Screw

P/N HL510

The Extended Range and Trimix Manual is the text-book literary assistant to the TDI Extended Range and Trimix certification course. Extended Range diving is exploring the limits of up to 180 FSW (55MSW) for air as a bottom mix and up to 200 FSW (60 MSW) for basic trimix. Within this range, the diver can explore many additional sights that are beyond the standard recreational Open Water limit of 130 FSW (40 MSW).With the Extended Range course behind them, a diver will be properly equipped to evaluate and plan dives where some of the less frequently visited wrecks lie, some potentially rare fish can be sighted, as well as interesting geological features.

The Equipment Service Technician Manual is the text-book literary assistant to the TDI Equipment Service Technician certification course. This course will give an in-depth description of various topics regarding the handling of oxygen and system design, different blending methods, and finally oxygen cleaning practices.

The Nitrox Gas Blending is the text-book literary assistant to the TDI Nitrox Gas Blending certification course. This course will grant each student with an in-depth knowledge of various topics regarding the use, and preparation, of various diving gases used within the scuba environment. Detailed chapters include information on scuba gases, oxygen handling & system design, blending techniques, gas mixing mathematics, and finally mixing charts and various necessary mathematical formulas.

The Decompression Procedures Manual is the text-book literary assistant to the TDI Decompression Procedures certification course. TDI has brought this course to the recreational diver in response to the demand and desire for more information. The Decompression Procedures course is available to two classes of divers. Recreational divers can take the course to develop new skills and understanding. Recreational-Technical divers can take the course during the series of courses available through TDI, usually between Advanced Nitrox and Extended Range and Trimix.

TDI Intro to Tech Manual w/ KQ

The Intro to Tech Manual is the text-book literary assistant to the TDI Intro to Tech certification course. The purpose of this manual is to introduce the sport diver to the concepts of technical diving. It focuses primarily on defining the various activities, explaining the equipment, outlining the options, and previewing the information that will be further addressed during training in each specialty area.

Using the Intro to Tech Manual as a reference, students may utilize the Knowledge Quest Work Booklet by answering the provided questions with the most appropriate and accurate answers. The Knowledge Quest is designed to be used as an assessment for enrolled students and their respective instructors.

*The manual alone is not a substitute for qualified Instructor Certification.

The Nitrox Manual is the text-book literary assistant to the TDI Nitrox certification course. In many respects, nitrox is just a tool that can make your diving more enjoyable. Similar to an additional piece of equipment, once you have completed this TDI course and logged your first few nitrox dives, you will understand what a valuable tool it is. Nitrox will add useful options and flexibility to your dive planning and execution.

Using the Nitrox Manual as a reference, students may utilize the Knowledge Quest Work Booklet by answering the provided questions with the most appropriate and accurate answers. The Knowledge Quest is designed to be used as an assessment for enrolled students and their respective instructors.

Folding Wrist Slate

P/N AC456

Halcyon Gauge (SPG)

Halcyon pressure gauges are as reliable as they are accurate. We start with an industrial-strength spring designed for pressures beyond 5,000psi (400bar), high-quality materials, and a highly visible, luminescent face make this a common favorite among divers in all environments. Pick from our Standard or Stage pressure gauges.

The weight and size of our Standard SPG gauge make it well suited as a primary SPG. The large, clear display is easy to read in all diving conditions.

Key Features of the Standard SPG:

• Calibrated for bar (0-360) or psi (0-5500)
• Nickel-plated brass with mineral glass lens
• Size - Gauge Face 2"

Technical divers with multiple stage/deco cylinders often prefer a small, light SPG. Our stage pressure gauge is perfect for just such an application.

Key Features of the Stage SPG:

• Slightly smaller than our standard SPG
• Light weight helps balance stage/deco bottles
• Two models calibrated either for bar (0-400) or psi (0-5000)
• Nickel-plated brass with acrylic lens
• Size - Gauge Face 1 3/4"

Poseidon Se7en Rebreather

Designed, built and tested to perform in all conditions, the POSEIDON SE7EN is the next generation rebreather. Safety, performance, ease of use and desirability are combined to enable divers of all abilities to experience the underwater world without compromise.

Whether you want to get closer to marine life, spend much more time underwater, dive deeper or simply enjoy the bubble-free silence, the POSEIDON SE7EN is the smartest, fastest, safest way to dive.

The POSEIDON SE7EN – one day, all rebreathers will be like it.
