AMP-4M Connector

Model#: 900030-000
The AMP-4M (p/n 900030-000) has 4 sockets and uses a gripper ring to secure it. It is considered a Male connector. The connector is not designed to be connected or disconnected underwater. This connector is pictured with the small cover. The rollover image shows a pair connected. Note: This connector has sockets but is considered a MALE connector.

The BNP-1 (black) double banana plugs are most commonly used on umbilicals for either 2- or 4-wire hard wire communications. However, we have used them on some headsets with boom or hand microphones. The picture to the left shows how you can stack them. The rollover picture shows them connected to an MK2-DCI Intercom.

The BNP-2 (red) double banana plugs are most commonly used on umbilicals for either 2- or 4-wire hard wire communications. However, we have used them on some headsets with boom or hand microphones. The picture to the left shows how you can stack them. The rollover picture shows them connected to an MK2-DCI Intercom.

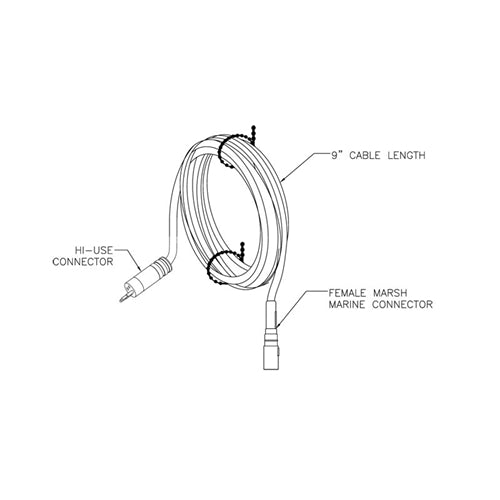

AD-HMF (Hi-use to Female Marsh Marine 4pin)

• AD-HMF (Hi-use to Female Marsh Marine 4pin)
• Model#: 910113-008
• Adaptor, Hi-USE® to female marsh marine 4 pin connector. (Hi-USE® Connector is hooked up for Diver - example. Convert's Marsh Marine Ear/Mic Assembly to Hi-USE)
• Item# 910113-008

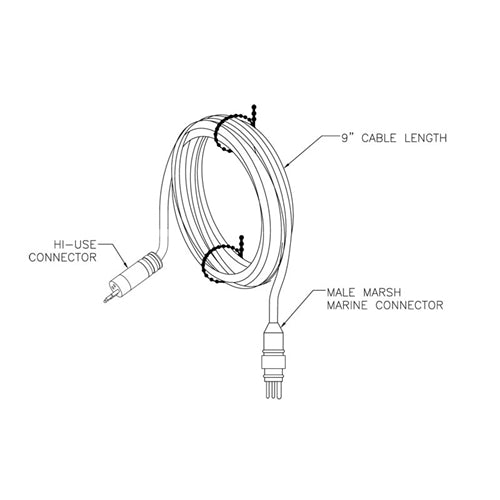

AD-HM (Hi-use to Male Marsh Marine 4pin)

• AD-HM (Hi-use to Male Marsh Marine 4pin)
• Model#: 910113-007
• Adaptor, Hi-USE® to male marsh marine 4 pin connector. (Hi-USE® Connector is hooked up for Umbilical - example. Convert's Marsh Marine ComRope to Hi-USE @ Diver End.)

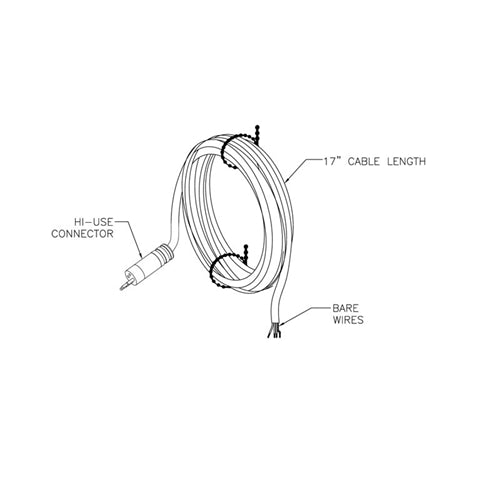

Adaptor, Hi-USE® to bare wires. (Hi-USE® Connector is wired for Umbilical.)

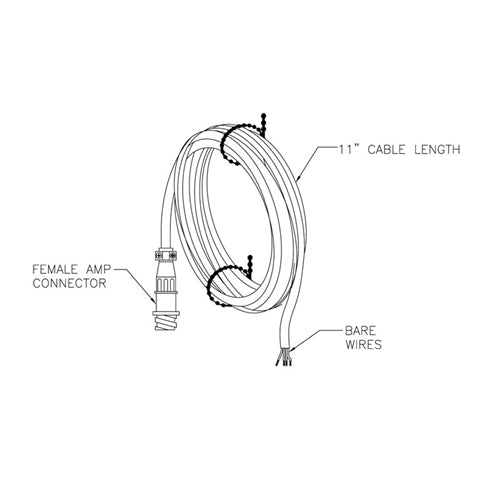

AD-F4 Adaptor (Female AMP to Bare Wires)

Model#: 910113-000
Adaptor, female AMP-4F connector to bare wires.

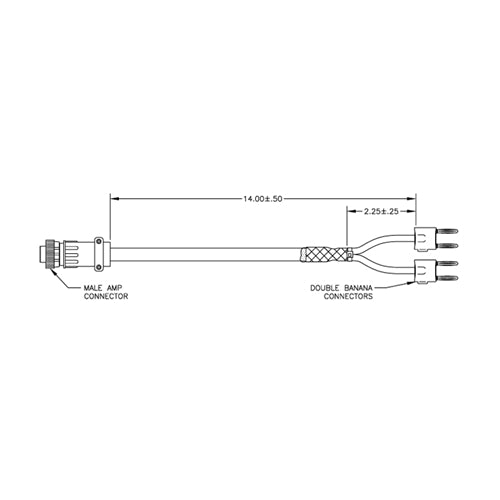

BL-24 Adaptor (Converts MK2-DCI Ropes to MK-7 Ropes)

Adaptor, Male AMP-4M to Banana Plugs (Converts MK2-DCI ropes to MK-7)

OTS-910096-000

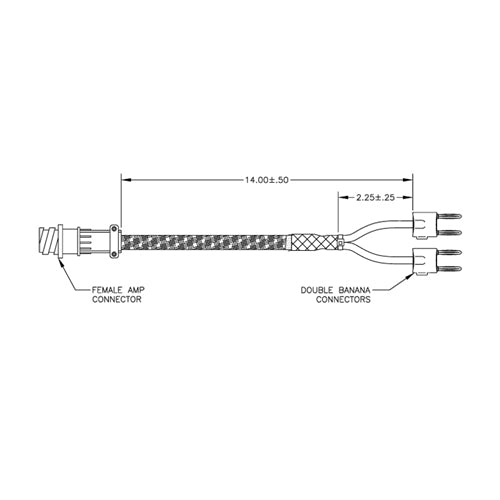

BL-28 Adaptor (Converts MK-7 Ropes to MK2-DCI Ropes)

Adaptor, Female AMP-4F to Banana Plugs (Converts MK-7 ropes to MK2-DCI)

OTS - 910093-000

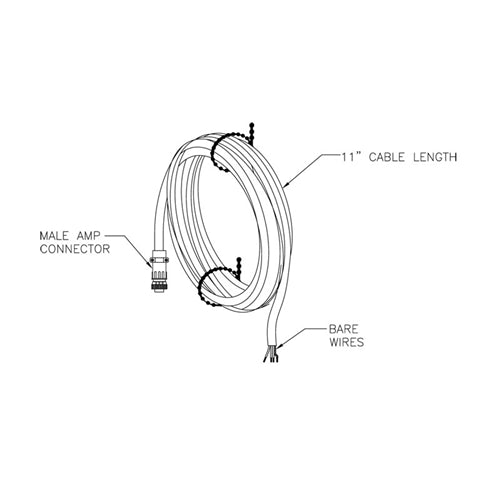

BP-A4 Adaptor (Male AMP to Bare Wires)

Model#: 910069-000
Adaptor, male AMP-4M connector to bare wires.

VSB-2 Audio/Video Splitter Cable (for SSB units)

AMP-4FL Connector

Model#: 900073-000
The AMP-4FL (p/n 900073-000) is a 4-pin female connector. It has an o-ring that makes it waterproof. The connector is not designed to be connected or disconnected underwater. This connector is pictured with the large cover. The rollover image shows a pair connected. Note: This connector has pins but is considered a FEMALE connector.

AMP-4ML Connector

Model#: 900072-000
The AMP-4ML (p/n 900072-000) has 4 sockets and uses a gripper ring to secure it. The connector is not designed to be connected or disconnected underwater. This connector is pictured with the large cover. The rollover picture shows a pair connected. Note: This connector has sockets but is considered a MALE connector.

AMP-4F Connector

Model#: 900029-000
The AMP-4F (p/n 900029-000) is a 4-pin female connector. It has an o-ring that makes it waterproof. The connector is not designed to be connected or disconnected underwater. This connector is pictured with the small cover. Rollover the alternate views to see a pair connected. Note: This connector has pins but is considered a FEMALE connector.
